Starship Fuzz

More big fuzz tones made popular by Jimi Hendrix

The Starship Fuzz rack effect module compares to the Roger Mayer Axis Fuzz designed for and used by Jimi Hendrix in his Axis and Band of Gypsies recordings. Try it between a Strat and a Marshall, where it naturally belongs.

Description

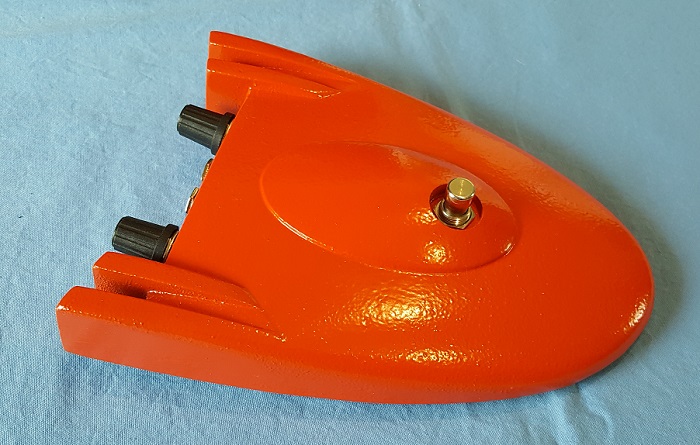

Roger Mayer worked on a number of fuzz effects for Jimi Hendrix. One of them became the Axis Fuzz and can be heard on several Hendrix recordings. The Axis Fuzz comes in a very large, heavy, spaceship-shaped enclosure. It provides a wide range of nearly clean to heavy fuzz tones, particularly well-suited to a cranked Marshall amp and Strat - go figure!

Configurations

Starship Fuzz - compares to Roger Mayer Axis Fuzz

Options

Tone Control - Add a simple Tone control to roll off some of the highs. The circuit was intended to brighten up Marshall amps and can be bright with brighter setups.
Noise Cut - Some versions of the original pedal included some extra components to cut noise. These seem to have been dropped in later versions. We don't include them by default, but this option adds them back in.
Noise Cut Switch - Same as Noise Cut option, but on a switch
Carbon Comp Resistors - For those that like the carbon comp sound in their fuzzes.
Custom Components - We use metal film resistors and a selection of capacitors that provide good tone and low noise.

Front Panel

On/Off indicator LED
Fuzz
Volume
(optional) Tone control
(optional) Noise Cut Switch

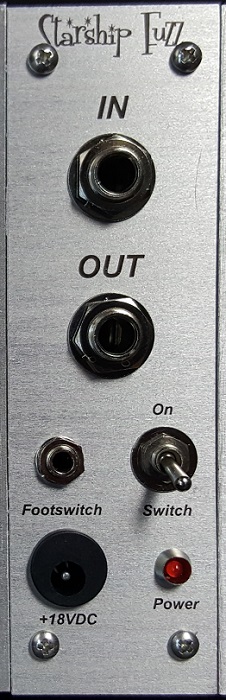

Rear Panel

Audio In
Audio Out
On/Off Footswitch
On/Off Override
DC Power
DC Power LED

Module Width

1.5" standard
2" left wing module and 1.5" right wing modules are available for 2-4 control configurations

Power Consumption (aprox)

8 - 12mA

Base Configurations

Part #	Description	List Price
MOD-STARSHIP	Starship Fuzz module	$199

Options

Part #	Description	List Price
MPOT-STARSHIP-TONE	Tone Control	$19
MPOT-STARSHIP-NOISE	Noise Cut	$0
MPOT-STARSHIP-NOISESW	Noise Cut Switch	$19
MPOT-STARSHIP-CCOMP	Carbon Comp Resistors	$5
MPOT-STARSHIP-CC	Custom Components	TBD
