ABY

Split or join signals





The ABY routing rack effect module allow you to join two signals into one or send one signal to two places.



Description

The ABY module is a normal split/join circuit.  It has an onboard configuration jumper that can be used to free up a footswitch with many common usage scenarios.



Configurations

• ABY - compares to ABY pedals



Options

None



Front Panel

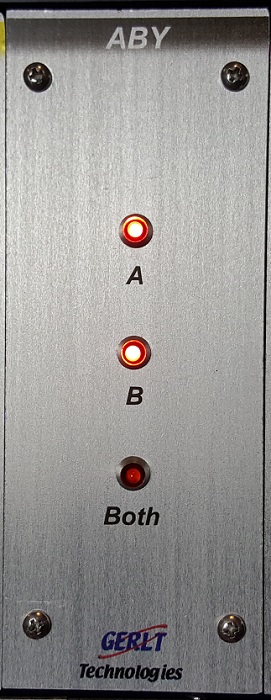

• (3) LED indicators for A, B, and Both



Rear Panel

• Audio A
• Audio B
• Audio Y
• And/Or Footswitch
• And/Or Override
• A/B Footswitch
• A/B Override
• DC Power
• DC Power LED



Module Width

• 2"
• left and right wings not currently available



Power Consumption (aprox)

5 - 10mA



Base Configurations

Part #	Description	List Price
MOD-ABY	ABY module	$250
